Wells near Douliana

The ride covered 21.9 km with 562 m of ascent and 563 m of descent, set along a rolling, stepped profile with five distinct climbs and a final sustained return ascent. Moving time totalled 01:26:05, with an ascent time of 00:46:00 and descent in 00:40:05. Gradients reached +24.4% on the steeper sections and –19.2% on the way down. Maximum speed recorded was 44.1 km/h, averaging 15.2 km/h across compacted gravel, loose limestone, embedded rock, hardpack earth, and intermittent agricultural track, with approximately 85–90% off-road. It was a stepped, segmented route — repeated short efforts with no extended recovery, consistent load throughout.

Climb profile (summary):

5 climbs | Total structured effort
Longest: C2 – 1.0 km @ 6.3%
Steepest: C3 – 24.4%
Final: C5 – 0.9 km @ 5.2%

Climb profile (C1–C5):
C1: 0.5 km | 7.7% | 15.9%
C2: 1.0 km | 6.3% | 18.0%
C3: 0.4 km | 8.3% | 24.4%
C4: 0.7 km | 9.1% | 16.9%
C5: 0.9 km | 5.2% | 10.5%

Douliana Wells are located at coordinates: 35.4321043, 24.1910942

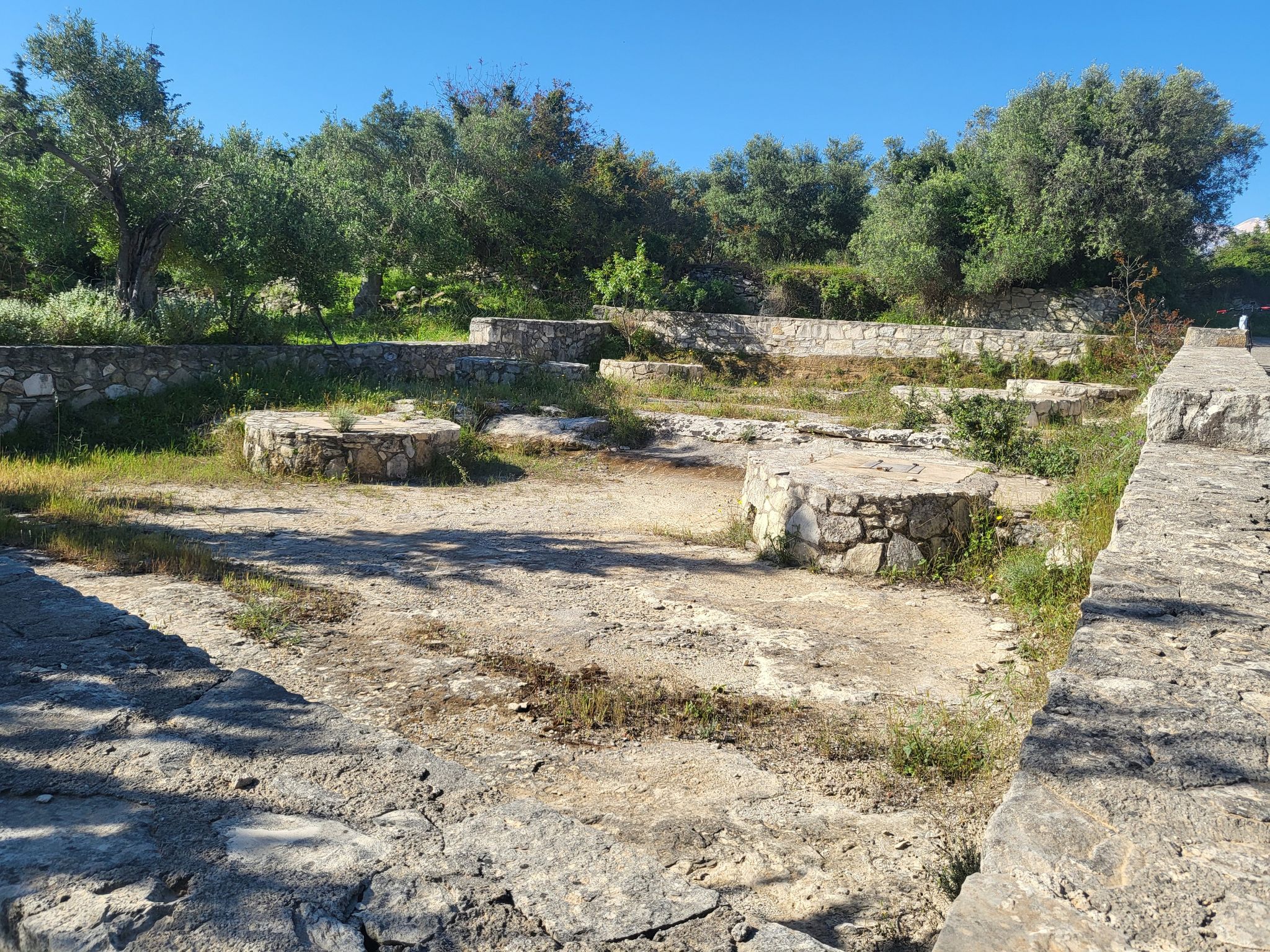

This is a built well complex rather than a single isolated shaft. The site consists of six circular well heads, a contained stone-paved working area, and a low masonry retaining structure designed to organise water movement, access, and probable overflow.

The circular forms with metal covers indicate protected shafts still considered structurally open below, while the stone channels and low wall openings suggest water discharge, drainage, or controlled outflow from the enclosed platform.

The most important feature is the relationship between the wells and the surrounding built surface. This is not just a water point. It is a managed hydraulic working area. The paved or hardened floor would have reduced mud around the heads, improved footing for people and animals, and controlled runoff.

The low openings in the masonry walls are too deliberate to be accidental gaps. They appear to function as outlets or drainage apertures, allowing excess water or wash-water to leave the enclosure. That indicates a system designed not only to draw water but to manage it after extraction.

The circular well heads are substantial and strongly built. Their diameter, stone facing, and raised rims suggest long-term practical use rather than decorative or recent construction. The capped covers show continued concern for safety and contamination control, even if the site is now only lightly maintained. The presence of more than one head in a confined area suggests either separate shafts tapping the same local water table, or a staged system in which different wells served different purposes at different times. One possibility is that one or more shafts were primary extraction points, while the surrounding worked area supported filling, washing, or watering.

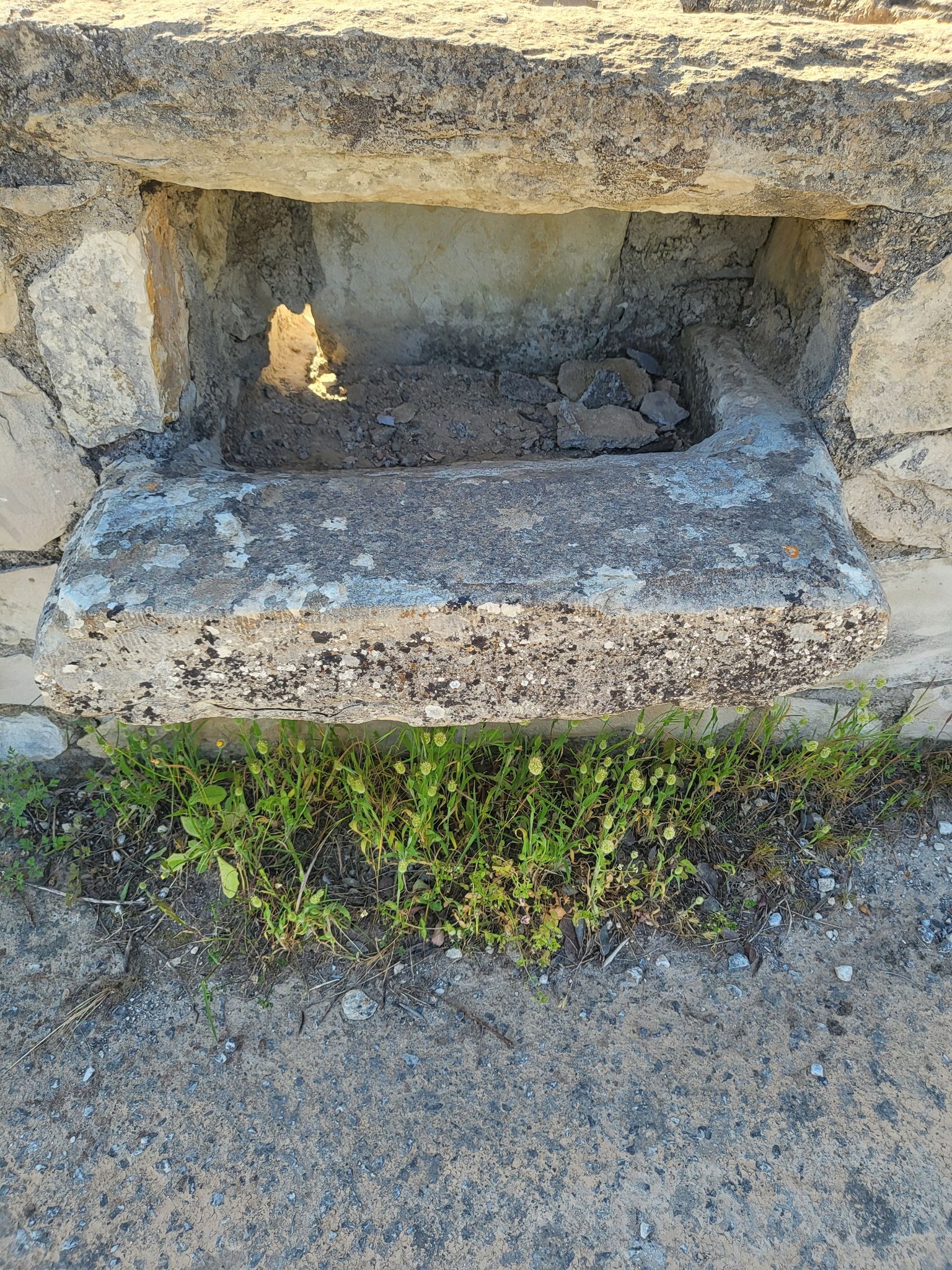

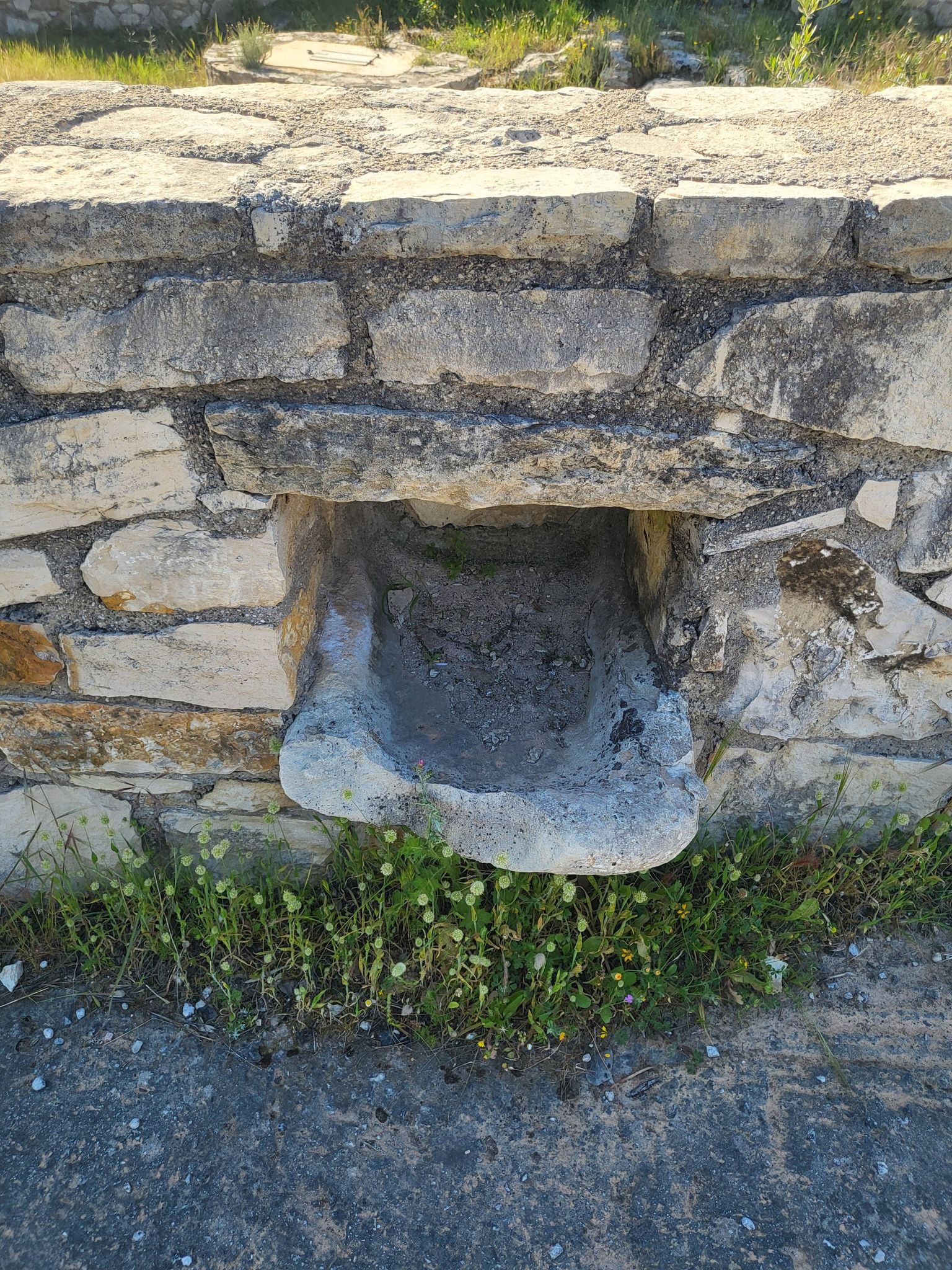

The carved stone opening visible in the wall is particularly useful. It appears to be a formed spout or outlet rather than random damage. There is also a rectangular opening through the wall, confirming intentional water passage. Taken together, these details support the interpretation of a communal or semi-communal water installation, not merely a private field well.
It may have served nearby plots, livestock, or a local cluster of households. The scale of the masonry and the contained court suggest organised use.

The visible construction suggests the site has been repaired or rebuilt in parts. Some stonework appears older and more irregular, while some upper surfaces and mortar lines appear more recent. This indicates a long-lived utility structure that has been maintained over time rather than abandoned and later restored as a monument.

I cannot date the wells. They may include older fabric with later rebuilding. Any precise dating would require local knowledge, archive work, or close inspection of masonry, mortar, and tool marks, which I will complete in the future.

In terrain terms, the siting is logical. It stands in cultivated ground with olives and close to a village zone, but not directly within dense modern development. This suggests a traditional agricultural water point positioned for regular access. The well complex sits where groundwater was evidently reliable enough to justify permanent masonry investment. In Apokoronas, that typically reflects practical hydrological knowledge built over generations rather than chance placement.

Working Interpretation:

This is a multi-well agricultural and domestic water complex, built to extract groundwater and manage its use within a controlled masonry enclosure. It likely served as a local shared utility point, possibly for a combination of drawing water, watering animals, and limited washing or handling of overflow. The site is functional in conception, not ornamental.

Recorded Status and Mapping Context

There is very limited formal documentation of specific wells at these exact coordinates.

There is at least one photographic record identified as:
“The water wells of Douliana, Apokoronos district, Crete.”

This confirms that the wells are recognised locally and have been recorded visually, but they are not catalogued as a named archaeological site or formally listed feature.

Across the wider Apokoronas region:

• The landscape is densely populated with wells and cisterns, many of which date to the Venetian period or later.
• These features are typically not recorded individually unless they are exceptional in scale, condition, or historical association.
• Most exist as part of a distributed rural water system, embedded within agricultural use rather than formal heritage classification.

Assessment

• The Douliana wells are not uniquely recorded in published archaeological inventories.
• There is no evidence of formal designation or individual site listing.
• They align with a known regional pattern:
– vernacular agricultural infrastructure
– locally recognised
– rarely documented in detail unless incorporated into a managed or interpreted site (e.g. Gavalochori)

Presence on WWII Royal Engineers Maps. (512 Field Survey Company, War Office 1:50,000 series)

Key Point:

Wells were sometimes marked, but selectively.

On British War Office / Royal Engineers 1:50,000 maps:

• Wells are typically shown as:
– a labelled “Well”
– or a small circular symbol

However, inclusion depended on:

• military relevance (reliable water supply for troops)
• map scale constraints (not every agricultural feature could be shown)
• accessibility and dependability of the source

Application to This Site

Given the location:

• Positioned away from major road junctions
• Not on a primary operational axis (such as Suda–Stylos–Sfakia)

The expected mapping outcome is:

• The wells are unlikely to be individually marked
• Where representation occurs:
– a single symbol may represent multiple wells
– clustered installations are often reduced to one point or omitted entirely

*Operational Mapping Context (Crete, 1941)*

British mapping priorities were focused on:

• troop movement and sustainment
• defensive positioning and key terrain

Water sources were recorded primarily where they:

• supported movement corridors
• were accessible to formed units
• had reliable yield

Secondary agricultural wells:

• were frequently omitted
• unless located on or immediately adjacent to key routes or settlements

I cannot yet confirm:

A) The date of first construction
B) Whether all visible well heads are original to one phase
C) Whether the enclosure was for domestic, agricultural, or mixed use
D) Whether any part of the site was fed by spring flow rather than only by shafts
E) The depth of the wells and the stability of the water table (seasonal vs permanent)
F) The original water extraction method (bucket, pulley, animal-driven system, or later mechanical adaptation)
G) Whether the complex was privately owned, family-shared, or a communal village installation

Conclusion

The Douliana wells sit within a documented regional system of rural water infrastructure but are not individually recorded in formal inventories. Their absence—or simplification—on Royal Engineers mapping is consistent with wartime survey practice, where complex local water systems were reduced, generalised, or excluded based on operational relevance.

This reinforces their classification as a non-mapped water asset, identifiable on the ground but not represented in the standard military mapping picture.
